Program 65 | Zig zag function with Fibonacci ratio detection

Zig zag function with Fibonacci detection

Program 65 consists of a new zig zag function and a companion show me study that demonstrates how to call the function. Both programs are included in the download.

Zig zag and Fibonacci ratios on 66 tick @YM chart

Program 65 applied to a 66 tick @YM chart

Program 65 applied to a 5 minute @YM chart

Program 65 applied to a 5 minute @YM chart

When the function is called it calculates and draws zig zag lines on the chart together with text at the zig zag pivots. The text shows the vertical height of each zig zag leg. If the vertical ratio of two most recent zig zag lines is close to a Fibonacci ratio, text is also displayed to show which Fibonacci ratio it is close to and the zig zag line is drawn with a heavier weight.

Both Fibonacci retracements and extensions (projections) are looked for. The following ratios are compared in the calculation:

  • 38.2
  • 61.8
  • 100.0
  • 138.2
  • 161.8

The function also returns 4 vectors:

  • Fibonacci data for zig-zag lines printed for zigzag pivot

    A close up of the text information drawn on the chart when a Fibonacci ratio match is found

    The UpMoves vector contains the last MaxVectorCount up moves. The most recent can be accessed using UpMoves.items[0] astype double the second most recent can be accessed using UpMoves.items[1] astype double etc

  • The DnMoves vector contains the last MaxVectorCount down moves. The most recent can be accessed using DnMoves.items[0] astype double
  • The HiZZ vector contains the bar numbers of the last MaxVectorCount high zig zag pivots. The most recent can be accessed using HiZZ.items[0] astype int, the second most recent can be accessed using HiZZ.items[1] astype int etc
  • The LoZZ vector contains the bar numbers of the last MaxVectorCount low zig zag pivots. The most recent can be accessed using LoZZ.items[0] astype int

Before attempting to access an element of a vector it is important to check that the element exists by taking a count of the vector. This is achieved by using LoZZ.Count.

The function does not contain a mechanism for regulating the number of text objects on the chart.

Calling the function

The function is called as follows:

Value1 = _Program65( RetracePerc, Tolerance, ZigZagColUp, ZigZagColDn, ColorOfText, LineThickness, UpMoves, DnMoves, HiZZ, LoZZ, MaxVectorCount, Font, FontSize );

With the following inputs and color options:

Inputs

RetracePerc( 0.2 ), // Percentage above running pivot that pivot must be formed to start a new zig zag
Tolerance( 10 ), // Percentage tolerance calculating a range above and below last change
ZigZagColUp( “AliceBlue” ), // Color of up zig zag line (see the program web page for available colors)
ZigZagColDn( “Orange” ), // Color of up zig zag line
ColorOfText( “Yellow” ), // Color of number label
LineThickness( 3 ), // Thickness of line if new zig zag if close to a Fibonacci ratio (valid options are 0, 1, 2, 3, 4, 5, and 6)
MaxVectorCount( 100 ), // The maximum number of elements in the UpMoves, DnMoves, HiZZ, and LoZZ vectors
Font( “Ariel” ), // Font for text objects
FontSize( 16 ); // Font size for text objects

Color options

AliceBlueDarkSlateGrayLightSalmonPaleVioletRed
AntiqueWhiteDarkTurquoiseLightSeaGreenPapayaWhip
AquaDarkVioletLightSkyBluePeachPuff
AquamarineDeepPinkLightSlateGrayPeru
AzureDeepSkyBlueLightSteelBluePink
BeigeDimGrayLightYellowPlum
BisqueDodgerBlueLimePowderBlue
BlackFirebrickLimeGreenPurple
BlanchedAlmondFloralWhiteLinenRed
BlueForestGreenMagentaRosyBrown
BlueVioletFuschiaMaroonRoyalBlue
BrownGainsboroMediumAquamarineSaddleBrown
BurlywoodGhostWhiteMediumBlueSalmon
CadetBlueGoldMediumOrchidSandyBrown
ChartreuseGoldenrodMediumPurpleSeaGreen
ChocolateGrayMediumSeaGreenSeashell
CoralGreenMediumSlateBlueSienna
CornflowerBlueGreenYellowMediumSpringGreenSilver
CornsilkHoneydewMediumTurquoiseSkyBlue
CyanHotPinkMediumVioletRedSlateBlue
DarkBlueIndianRedMidnightBlueSlateGray
DarkBrownIndigoMintCreamSnow
DarkCyanIvoryMistyRoseSpringGreen
DarkGoldenrodKhakiMoccasinSteelBlue
DarkGrayLavenderNavajoWhiteTan
DarkGreenLavenderBlushNavyTeal
DarkKhakiLawnGreenOldLaceThistle
Dark MagentaLemonChiffonOliveTomato
DarkOliveGreenLightBlueOliveDrabTurquoise
DarkOrangeLightCoralOrangeViolet
DarkOrchidLightCyanOrangeRedWheat
DarkRedLightGoldenrodYellowOrchidWhite
DarkSalmonLightGrayPaleGoldenrodWhiteSmoke
DarkSeaGreenLightGreenPaleGreenYellow
DarkSlateBlueLightPinkPaleTurquoiseYellowGreen

Technical lessons

Legacy drawing objects

I created an earlier version of the program using both legacy drawing objects AND the more recently introduced drawing objects. I am including this ‘legacy’ program with the download (with the associated calling program) as you may be interested to see how to write code for either of these two technologies or to replace one technology with another.

Drawing legacy trendlines

Legacy trend lines are drawn using the following syntax:

Value1 = TL_New( StartDate, StartTime, StartPrice, EndDate, EndTime, EndPrice );



Dates use YYMMDD or YYYMMDD format (three digits are used to express the year 2000 and later), and times use 24-hour format, HHMM.

The problem with it is that on certain charts several bars might have the same HHMM stamp which can lead to unexpected results on tick and seconds charts.

In the following image the legacy drawing tools (the thinner lines) have difficulty positioning a drawing object accurately when more than one bar shares the same minute based time signature. The new drawing tools position the line accurately.

The legacy version of program 65 applied to a 33 tick IBM chart. Note that the new object based drawing objects position text accurately, whereas the legacy drawing objects are a few bars different,

The legacy version of program 65 applied to a 33 tick IBM chart. Note that the new object based drawing objects position text accurately, whereas the legacy drawing objects are a few bars different,

New drawing objects

To draw lines with the new drawing objects we create a pair of BNPoint objects using a bar number and price. The trend line is created and styled and then added to the chart.

Two potential ‘gotchas’
Gotcha 1

A BNPoint refers to the absolute bar index (zero-based) of the collection of bars in a chart. This is not the same as the BarNumber function or CurrentBar reserved word which count the number of bars available for analysis after MaxBarsBack. So to create a BNPoint for the current bar (BarNumber) would be:

NewBar = BarNumber + MaxBarsBack – 1;

Gotcha 2

Another issue that can cause what appear to be spurious results are the ‘Show empty daily trading periods for traditional chart types’ and ‘Show empty intraday session periods for traditional chart types’ settings. These can be found by clicking View – Chart Analysis Preferences

tutorial103-chart-analysis-prefs

If these are selected, the chart includes blank bars which ‘confuse’ the bar number for BNPoints. For example, in the following daily chart of IBM, the ‘Show empty daily trading periods for traditional chart types’ is selected. The chart looks like the following (notice how the pivots and the lines do not line up correctly):

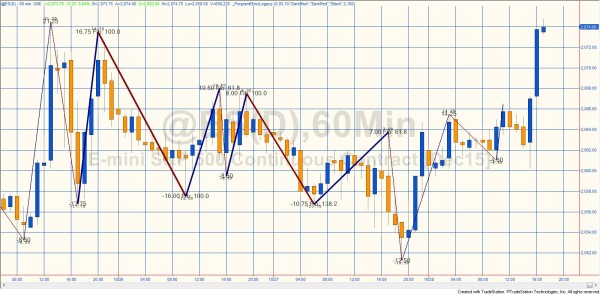

The legacy version of program 65 applied to a 60 minute @ES chart.

The legacy version of program 65 applied to a 60 minute @ES chart.

In the following chart all settings are identical apart from “Show empty intraday session trading periods for traditional chart types” is deselected.

es-60min-program65-2

Note that vectors do not store a history. In other words, you cannot look back 5 bars and see what the vector was storing then (like you could with an array).

Program download

Program 65 was developed for TradeStation 9.5 and above and is not compatible with MultiCharts because of some of the drawing technology used.

An UNPROTECTED version (i.e. the TradeStation EasyLanguage is fully functional and you can see the source code) and associated unprotected function is available for for IMMEDIATE download for $49- by clicking the ‘add to cart’ button. After download the program can be opened, you will be able to see the program code and modify it.

In addition I am including with a download a bonus show me study and function that include drawing object functionality in both the legacy and new drawing object types.

After purchase you will be redirected to a download page, so don’t close the browser. You will also receive an automated email with the download link and instructions for accessing the bonuses.

If you are a Gold Pass member make sure you enter the special coupon code to get 20% discount off these prices.

 Video demonstration of program 65 | introduction and using on a chart

Program 65 was developed for TradeStation 9.5 and above and is not compatible with MultiCharts.
